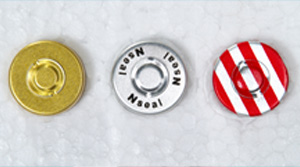

Vial Seal

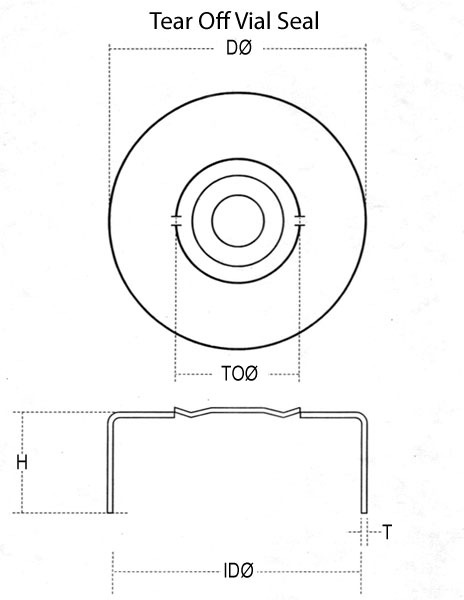

| Tear Off Vial Seal |
| Normal Size |
DØ |
IDØ |
H |
T.O. |
| 13 mm |
13.8 |
13.3 |
7.0 |
7.5 |
| 14.0 |
13.5 |
7.2 |
7.6 |
| 20 mm |
20.6 |
20.2 |
7.6 |
10.0 |
| 20.9 |
20.4 |
7.8 |
10.5 |
D = Out Side Diameter
ID = Inside Diameter
H = Height
T.O. = Tear Off Cutting |

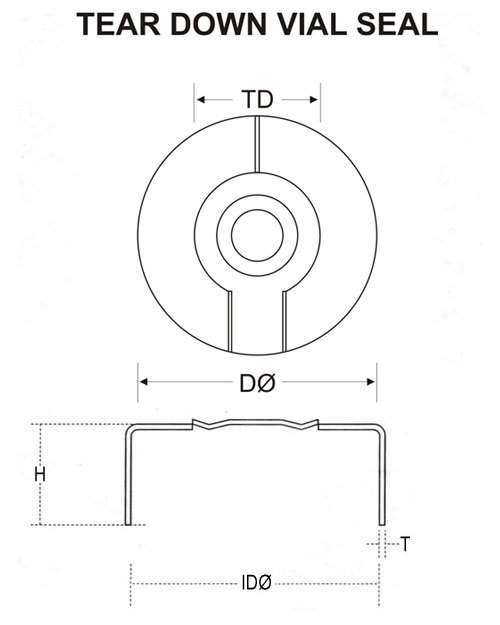

Tear Down Vial Seal
| Tear Down Vial Seal |
| Normal Size |
DØ |
IDØ |
H |
T.D. |
| 20 mm |
20.7 |
20.2 |
7.6 |
10.0 |
| 20.9 |
20.4 |
7.8 |
10.5 |
| 32 mm |
32.0 |
31.5 |
10.0 |
22.0 |
| 32.5 |
32.0 |
10.2 |
22.5 |
D = Out Side Diameter
ID = Inside Diameter
H = Height
T.D. = Tear Down Cutting |

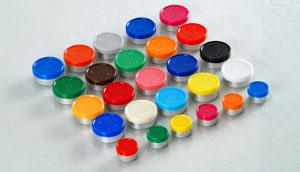

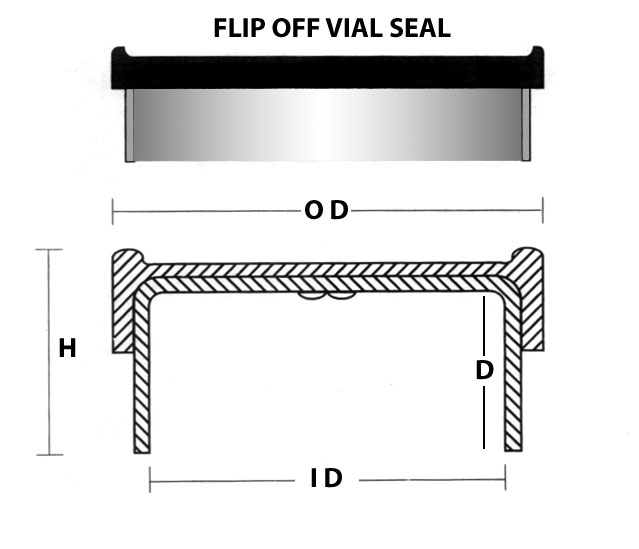

Flip Off Seals
| Flip Off Tear Off Seal |
| Normal Size |
O.D. |
ID |
H |
D |
| 13 mm |
15.0 |
13.3 |
8.3 |
7.0 |
| 15.2 |
13.5 |
8.8 |
7.2 |
| 20 mm |
 22.5 |
20.2 |
9.0 |
7.6 |
| 23.0 |
20.4 |
9.5 |
7.8 |
D = Out Side Diameter
ID = In Side Diameter
H = Height
D = Vial Seal Deep |

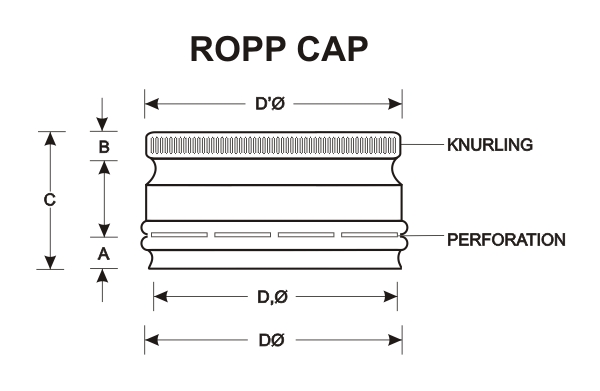

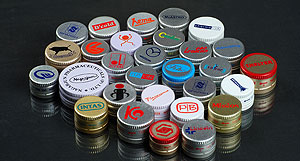

Aluminium Roll-on Pilfer Proof Caps (ROPP Caps)
| ROPP Caps |
| Normal Size |
DØ |
D,Ø |
D'Ø |
A |
B |
C |
| 22 mm |
22.0 |
20.9 |
22.5 |
3.5 |
3.8 |
14.8 |
| 22.4 |
21.2 |
23.0 |
4.0 |
4.0 |
15.1 |
| 25 mm |
25.2 |
23.9 |
25.5 |
3.5 |
3.8 |
16.4 |
| 25.6 |
24.2 |
26.0 |
4.0 |
4.0 |
16.6 |
| 28 mm |
28.2 |
26.5 |
28.5 |
4.0 |
3.8 |
17.6 |
| 28.6 |
27.0 |
29.0 |
5.0 |
4.0 |
18.0 |
| 31.5 mm |
31.5 |
30.0 |
31.8 |
4.0 |
3.8 |
17.5 |
| 32.0 |
30.2 |
32.3 |
5.0 |
4.0 |
18.0 |
| 38 mm |
38.8 |
36.3 |
39.0 |
4.5 |
3.8 |
16.3 |
| 39.3 |
37.0 |
39.5 |
5.5 |
4.0 |
16.8 |
| 46 mm |
45.5 |
44.5 |
46.5 |
4.5 |
3.8 |
15.9 |
| 46.0 |
45.0 |
47.0 |
5.5 |
4.0 |
16.4 |
| 53 mm |
52.5 |
51.5 |
53.2 |
4.5 |
3.8 |
18.5 |
| 53.0 |
52.0 |
53.7 |
5.5 |
4.0 |
18.0 |
DØ = Out Side Diameter
D,Ø = Inside Diameter |
|
